TENET GECO Motion
4-axis programmable motion controller specifically designed for LabVIEW users.
Request pricing

TENET GECO Motion - ​The easiest way to integrate motion control with LabVIEW.

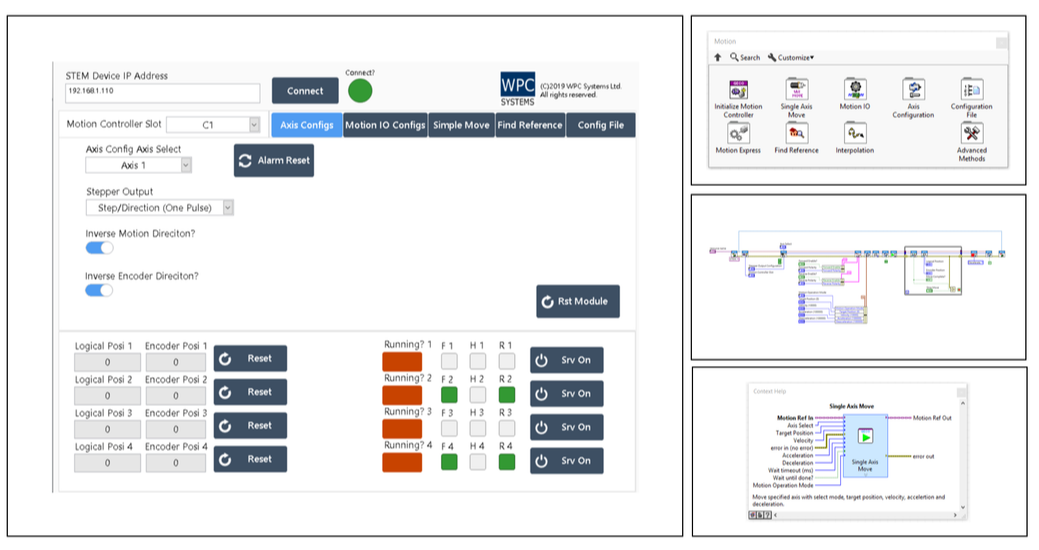

The TENET GECO Motion is a 4-axis programmable motion controller designed specifically for LabVIEW users.  In addition to an unique modular hardware design, the TENET GECO Motion also includes an intuitive LabVIEW API, featuring:
​
  • Test Panels for quick debug
  • LabVIEW examples for every function
  • NEW! Motion Express VI for easy programming

How to use GECO Motion

1. Connect USB to computer
2. Provide 24V power
3. Connect motor drive and switches
4. Install software
​5. Use examples and start programming!
For a comprehensive tutorial, visit our getting started guide:
GECO Motion Getting Started


Product Specifications

  • Functional replacement for NI 73XX series motion controllers.
  • Pulse output for stepper motor control (Max rate: 8M pps)
  • Programmable acceleration and deceleration time
  • Trapezoidal and S-curve velocity profile
  • Encoder input (ABZ) up to 12MHz
  • Home/FWD/REV limit inputs
  • Servo On/Alarm Clear outputs
  • Breakpoint/Position Capture functions

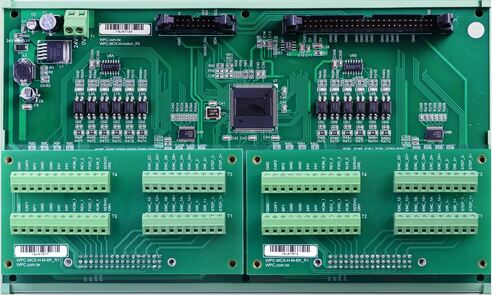

  • Optional breakout board for direct connectivity to drives:
    • Delta ASDA-B2
    • Yaskawa Sigma-7
    • Panasonic Minas A4/A5/A6
    • Mitsubishi MR-J4
  • NEW! Motion Express VI, making LabVIEW programming easy!

USB, ethernet, or standalone operation

The GECO Motion can connect to your PC or laptop via USB or ethernet connectivity options.  In addition to this, GECO Motion also supports standalone operation, for applications that require more stability than a PC-based system.

Need more information?  Get in touch with an expert today!

Get Started

Standalone Operation - GECO UNO

Based on the NI sbRIO, the GECO UNO solution offers a reliable real-time processor along with a FPGA for high-speed logic and precise timing.  You can use GECO UNO for standalone control of GECO Motion.
Product highlights:
  • Fanless design
  • Aluminum enclosure for superior heat dissipation
  • Interfaces: RS-232 x 1, CAN x 1, Ethernet x 1
  • Based on NI sbRIO
    • LabVIEW RT compatible
    • LabVIEW FPGA compatible
  • 4-slot IDC-50P 3.3V DIO
  • Module support:
    • 24ch-AI/8ch-AO analog input/output combo module
    • 24ch-24V-DI
    • 24ch-24V-DO
    • 12-12ch-24V-DIO
    • 24ch-5V-TTL-DIO
    • 24ch-2-wire-Multiplexer / 4x6-Matrix switch
    • 4-axis motion control (GECO Motion)
  • 10/100M Ethernet / TCP command sets
  • Comprehensive LabVIEW API

Demo Videos


Case Studies

Learn about how our customers are using GECO Motion!
GECO Motion Case Studies
Keystroke testing
Vision inspection with motion
Medical imaging
RF antenna testing

Manuals and Downloads

GECO Motion LabVIEW driver software and additional information available here:
GECO Motion Downloads
